Summary
GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.
Feature
 New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.
 Modular structure, easy to assemble.
 Five colors available: white, pink, gray, black, and blue.
 Adapted to O3 AIR Unit, Link, and analog image transmission.
 Compatible with 1003 and 1102 motors.
 The antenna fixed shield is carefully designed to be both practical and beautiful.
 Frame-type battery compartment makes it easier to disassemble and install batteries.

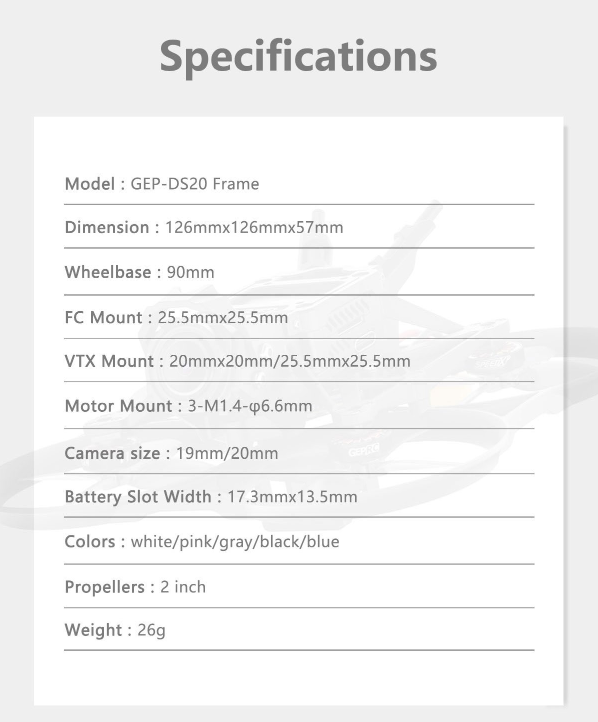

Specification
Model:GEP-DS20 Frame
Dimension:126mm*126mm*57mm
Wheelbase:90mm
FC Mount:25.5mm*25.5mm
VTX Mount:20mm*20mm/25.5mm*25.5mm
Motor Mount:3-M1.4-φ6.6mm
Camera size:19mm/20mm
Battery Slot Width:17.3mm*13.5mm
Colors:white/pink/gray/black/blue
Propellers:2 inch
Weight:26g
Includes
1 x Integrated Protective Frame
1 x Main Frame
1 x VTX Mounting Plate
1 x Camera Protective Cap
1 x Screw Pack
2 x VTX Antenna
1 x 1.5mm L-type Screwdriver
1 x Torx Screwdriver
