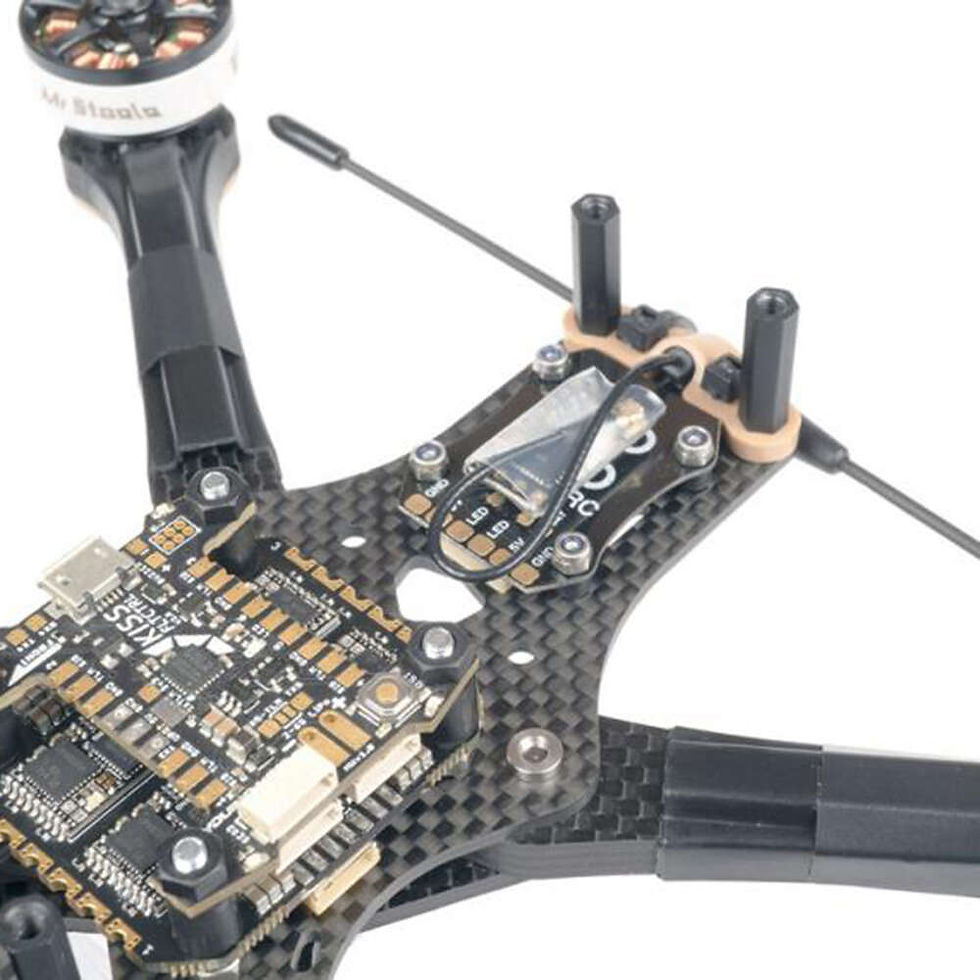

INTRODUCING THE FUTURE OF FREESTYLE
THE APEX SHATTERS THE GLASS CEILING IN FREESTYLE FRAME DESIGN.
Through a process of continous refinement and always striving to improve we have created a new breed of freestyle frame. The Apex does not compromise in stiffness or durability, so you never have to choose between confidence and performance.
Unique design elements new to the FPV world make your build and maintenance more simple than ever before. Toughness of the frame itself is increased while also offering much better protection for your investment in flight electronics.
APEX ARM DESIGN
The arms of an FPV frame are the key structural component which translate the thrust from the motors to the majority of the mass in the aircraft, which is secured to the body of the frame. The design of the arms and how they are attached to the body is one of the most vital aspects that influences the performance of an FPV frame.
There are multiple problems which can occur with existing arm designs which can lead to poor performance, difficulty tuning and added cost. The Apex addresses all of these problems with a simple and unique new design that eliminates all arm slop and drastically increases durability.
PERFECTLY SYMMETRICAL
Symmetrical arms make it possible to pocket one side of the part without introducing the need for distinct left and right arms, making you require more spare parts. We use a pocket instead of a hole under the motor to increase durability and we embed a press nut to simplify attachment and avoid clearance issues under your stack.
SIMPLE MAINTENANCE
Flight electronics are mounted to the upper main plate using countersink bolts. This completely decouples the arm attachment from the electronics mounting. Arms can be replaced using two bolts without any disturbance to your stack.
SHOULDER BOLTS AND THREADLOCKER
Our custom machined shoulder bolts act as a solid steel pin through the arm which eliminates slop and tolerance issues. The precision shaft passing through the arm removes all side-loading of the carbon laminations on to the chisel-like threads of a regular bolt. Factory added threadlocker and custom aluminium cone washers spread the load of the clamping force and ensure the bolts will not vibrate loose.
KEY TO THE APEX
At the apex of a masonry arch a keystone locks all the stones in to position and allows the arch to bear weight and be self supporting. A keystone is a hallmark of strength and good design, the Apex FPV frame is no different and the carbon key sits at the heart of the frame to distribute forces applied to the arms.
SPECIFICATIONS
PLATE THICKNESS
Arms: 5.5mm
Key: 5mm
Lower Main: 2.5mm
Upper Main: 2mm
Top: 2mm
Camera Sides: 2mm
STANDOFF HEIGHT
Front: 28mm
Rear: 20mm
DRY WEIGHT
Alu hardware: approx. 115g
Steel hardware: approx. 125g
MOTOR TO MOTOR
225mm - Fits 5.2" Props
ARM GEOMETRY
Compressed X using
Pythagorean triple 3:4:5
EXTRA INCLUDED PARTS OVER THE BASE MODEL APEX FRAME KIT
2x Lipo Strap - Medium - ImpulseRC
1x Apex Plastics Kit - Coyote Brown
1x Apex Plastics Kit - BLACK
2x Apex Arm Covers - BLACK - (4 Pack)
1x Foam Wedge for HD Camera
1x Foam Strip 150mm - Landing Feet
1x Apex Regulator Board Kit
1x Apex OSD Board Kit
1x Apex OSD Wire Harness Kit - KISS
1x Apex Full Screw Pack - 7075-T6 Aluminium - Black
